Topmodel CZ Swift S1 Standard 3140 mm ARF (JEPPESEN design)

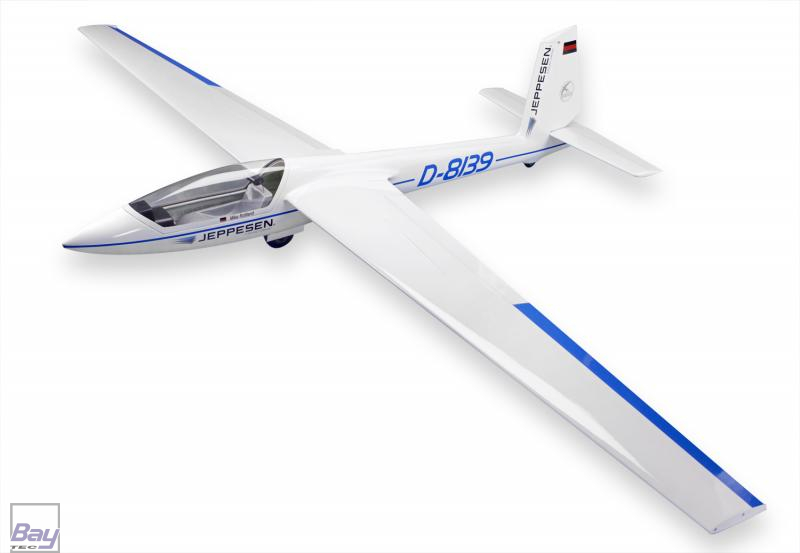

Scale model of the famous sailplane.
The wings are equipped with air-brakes but also with camber flaps. These flaps have a longer length compared to reality and are divided into 2 parts. Thus, it is possible to use these 2 parts, together, like gigantic ailerons but also as camber flaps. This makes possible to make the Swift even more general-purpose and powerful in aerobatic.

The model is designed and manufactured in Czech Republic. Spare parts are in stock.

Technical specification:

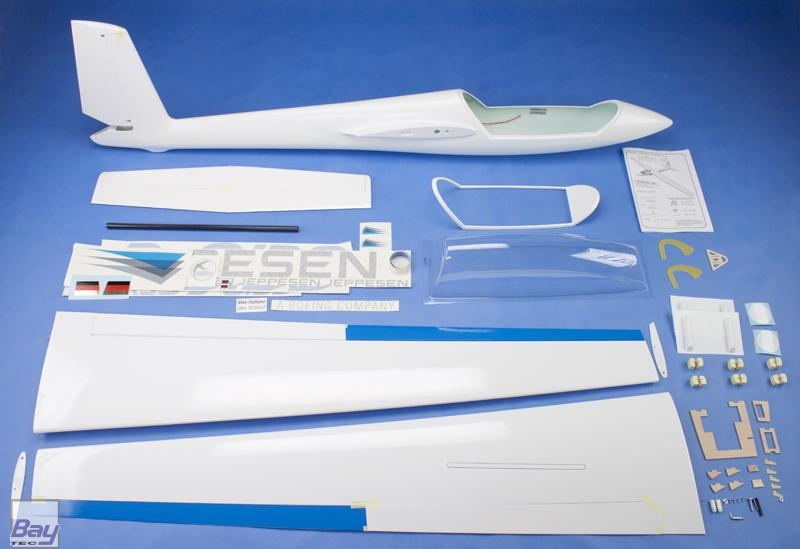

The kit contents:

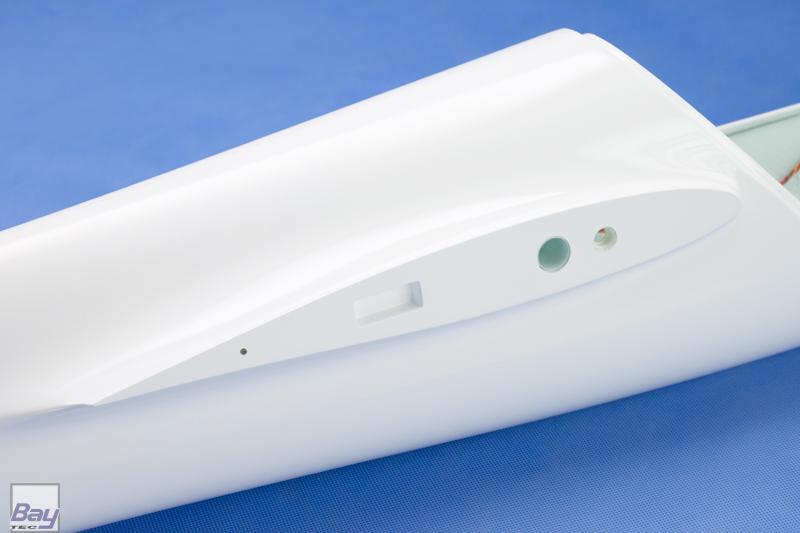

• Ready fiberglass fuselage
• Ready foam core abachi wings with carbon-fibre reinforcing covered with Qualitätsfolie® with metallic airbrakes already installed.
• Ready foam core balsa horizontal stabiliser covered with Qualitätsfolie®.
• Fiberglass hollow moulded fin
• Fiberglass cabin frame
• Transparent cabin
• Manual

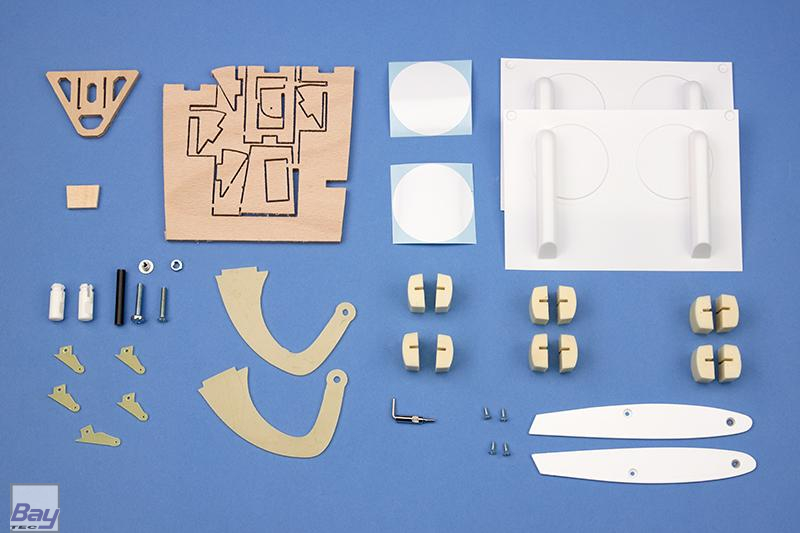

• Accessories



Controls: (not included)

• Ailerons (4 micro servos) - HS - 5245MG digi (HS 225 MG)
• elevator (1 micro servo) - HS - 5245MG digi (HS 225 MG)
• rudder (1 servo STD) - HS - 485HB
• airbrakes (2 micro servos) - HS 82MG
• retractable landing gear - (1 servo STD) - HS 645MG (only if the model will be equipped with a retractable landing gear)
• tow hook - (1 servo STD) - HS 645MG (only if the model will be equipped with a tow hook)
