Produktbeschreibung
The high quality outrunner from Dualsky EG line.
- designed for lightweight glider (e.g. F5J, eRES, ASFC P5B, light F5J, speed wings, small UAV)
- hollow shaft 4,0mm
- open motor case for best cooling
| Length (w/o shaft) | 26,4 | mm |
Diameter | 28,6 | mm |
Weight | 41 | g |
Shaft diameter | 4,0/hollow | mm |
| Mount pitch | 4xM3/16 | mm |
| Shaft Diameter | 4.0 | mm |
| KV | 1400 | KV |
| Internal Resistance | 37,5 | mOhm |
| Idle Current | 1,35 | A@10V |
| Burst Current(15s) | 40 | |
| Recommended ESC | XC4018BA V2 | |
| Max. power (15s) | 480 | W |
| Slots/Poles | 12N14P | |
| No. of cells | 2-3* Lipol |
* Suggested working voltage
The motor is designed for front mount only.
The motor is already included in the database of the calculator www.ecalc.ch
Package content:
- electromotor Dualsky XMxxxxEG-xx
- 4 pcs M3 bolts for mounting
- 3 pairs of connectors 3,5mm and shrinking tube

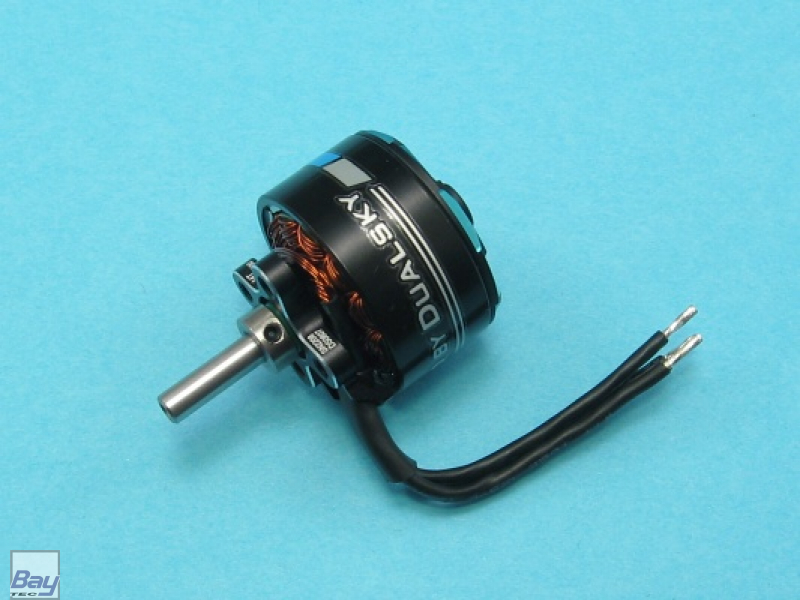

The picture is ilustrative. Parameters and package content can be subject of change without notice.
